在中空玻璃打胶机的设备中有几个是核心需要保养的零配件，只要对这几个零配件平时注意保养维护基本可以保证打胶机的无故障长久使用。

In the insulating glass glue machine equipment, there are several key maintenance parts, as long as these spare parts usually pay attention to maintenance, maintenance can basically guarantee the rubber machine no fault, long-term use.

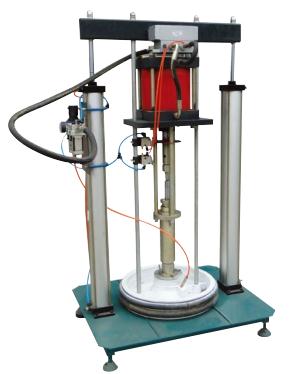

1.双组份打胶机液压/气动型主要有基料泵、固化剂泵、比例泵、基料泵升降系统、调比结构、混胶结构、气动系统、液压系统及电气系统组成。

1. pairs of hydraulic press / pneumatic type mainly has base pump, curing agent pump, proportional pump, base pump, lifting system, regulating structure, mixing structure, pneumatic system, hydraulic system and electrical system.

2、基料泵、固化剂泵及比例泵均采用特殊的高压柱赛泵，双向等量供料，基料泵由液压系统驱动，固化剂泵由气动马达驱动。

2, base pump, curing agent pump and proportional pump are used special high-pressure cylinder race pump, two-way equal feeding, base pump driven by the hydraulic system, curing agent pump driven by pneumatic motor.

二者辅以增压供料压盘，充分保证高黏度流体的满腔输送，基料压入并增高至高压，固化剂压入并增压，再送至比例泵，固化剂的流量由调比机构调节，二种组份同时送入混合器，充分混合后到达挤胶枪。

The two auxiliary booster feeding pressure plate, and fully guarantee the delivery filled with high viscosity fluid, the base material is pressed in and increased to high pressure, pressure and curing agent into the supercharger, sent to the proportional pump, curing agent flow by adjusting mechanism for adjusting the ratio of two components at the same time, into the mixer after mixing to glue gun.

3. 升降系统采用手动转阀控制，两种组份的比例调节，可通过调整滑块在摆动杆上的位置来改变。以上是双组份打胶机的基本操作原理.

3. the lifting system is controlled by manual rotary valve, and the proportion adjustment of the two components can be changed by adjusting the position of the slider on the swing bar. The above is the basic operation principle of the double component gluing machine

4. 固化剂过滤器下端出口及混合器进料处均设有高压球阀，冲胶泄压用，混合器上设有单向针阀，不但使混胶更加均匀，而且防止两种组份互窜。

The 4. curing agent, the lower end of the filter and the mixer inlet are all provided with a high pressure ball valve, which is used for punching and releasing pressure. The mixer is provided with one-way needle valve, which not only makes the mixing glue more uniform, but also prevents the two components from channeling each other.
